At Elite Fire Equipment Co., Ltd., we specialize in manufacturing FM/UL-certified fire protection valves and hydrants. Our product line includes fire butterfly valves, gate valves, check valves, alarm valves, deluge valves, and fire hydrants, and the related accessories. All the products have got the FM approved and UL listed!
Our Top-Selling Fire Protection Products
1. Fire Butterfly Valves (UL/FM Certified)
·Groove Standard: ANSI/AWWA C606 or Metric Standard Clear Waterway design
·Sizes: 2″,2.5″,3″,4″,5″,6″,8″,10″,12″
·Approvals: UL, CUL, FM
·Maximum Working Pressure: 300 PSI
·Maximum Testing Pressure: 600 PSI
·Pressure conforms to UL1091 and ULC/ORD-C1091and FM 1112
·Working Temperature Range: 0~80℃/32~176°F
·Coating Details: Epoxy coated or coating upon request
·Ductile iron disc-EPDM sealing
·Top Flange Standard: ISO 5211
·Application: Indoor and Outdoor Use, Fire inflow water, drain pipe, high-rising building fire fighting system, industrial factory building fire protection system
2. Gate Valves (UL/FM Certified)
·Face to Face Standard: ASME B16.10
·Sizes: 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ (FM and UL)
·Flange Standard: ASME/ANSI B 16.1 Class 125
ASME/ANSI B 16.42 Class 150
BS EN 1092-2 PN16
GB/T9113.1
·Groove Standard: Metric or ANSI/AWWA C606
·Approvals: UL, CUL, FM
·Maximum Working Pressure: 300PSI
·Maximum Testing Pressure: 600 PSI
·Pressure conforms to FM 1120/1130, UL 262, ULC/ORD C262-92
·Working Temperature Range:0~80℃/32~176°F
·Coating Details: Epoxy or Coating upon request
·NPT plug on body with 2 operating nuts
3. Check Valves – Preventing Backflow (UL/FM Certified)
Flange end check valve:
·Design Standard: AWWA C508
·Flange Standard: ASME/ANSI B16.1 Class 125 ASME/ANSI B 16.42 Class 150 BS EN 1092-2 PN 16
GB/T9113.1
·Sizes: 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″
·Face to Face Standard: ASME B16.10
·Approvals: UL,FM
·Maximum Working Pressure: 300PSI
·Maximum Testing Pressure: 600PSI
·Pressure conforms to UL 312/FM class 1210
·Working Temperature Range: 0~80℃/32~176°F
·Coating Details: Epoxy coated or coating upon request
·Applications:
Used both vertically and horizontally;
Used in one-way flow pipeline to prevent the water from back flow
Grooved end check valve:
·Groove Standard: ANSI/AWWA C606 or Metric
·Sizes: 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″
·Approvals: UL,FM
·Flange Standard: ASME/ANSI B 16.1 Class 125
ASME/ANSI B 16.42 Class 150
BS EN 1092-2 PN 16
GB/T9113.1
·Maximum Working Pressure: 350PSI
·Maximum Testing Pressure: 700PSI
·Pressure conforms to UL312/FM class 1210
·Working Temperature Range: 0~80℃/32~176°F
·Coating Details: Epoxy coated or coating upon request
·Other Connections: Flange*Flange; Groove*Flange; Flange*Groove.
·Applications: Used in one-way flow pipeline to prevent the water from back flow.
4. Alarm Valves (UL/FM Certified)
·Working pressure: 300PSI
·Flange Standard: ASME/ANSI B16.1 Class 125 ASME/ANSI B16.42 Class150 / BS EN 1092-2PN16
·Groove Standard: AWWA C606
·Working Temperature Range: 4~70℃/39.2~158°F
·Coating Details: Epoxy coated or coating upon request.
5. Deluge Valves (UL/FM Certified)
·Design Standard: ASME B16.42-2016
·Flange Standard: Class 150/300 or DIN 2501 PN16/PN25
·Groove Standard: AWWA C606/IS06182
·Working Temperature Range: 4~52℃/39.2~125.6°F
·Reserved alarm valve system interface: 3/4″NPT
·Available Sizes: 2″-8″
·Maximum Working Pressure: 250PSI or 300PSI(can be chosen)
·Maximum Testing Pressure: 500PSI/600PSI conforms to UL260,FM1011/1012/1013,FM1020

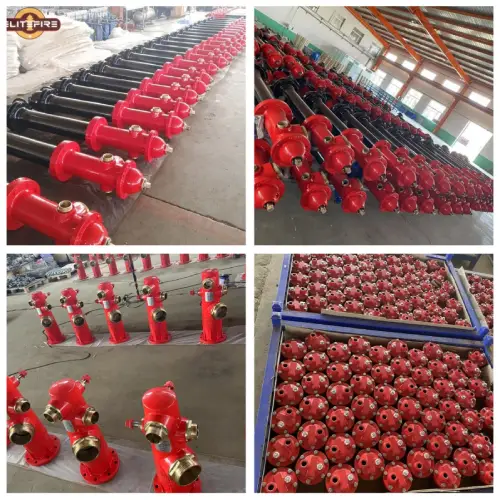

6. Dry Barrel and Wet Barrel Fire Hydrants (UL/FM Certified)
Dry Barrel Hydrant:
·Nominal Pressure: 250PSI
·Design Standard: AWWA C502
·Inlet flange size: 6″(DN150), Main Valve size:133.4 mm/5-1/4″
·One pumper nozzle: 4.5-4NH thread. Two hose nozzles, 2.5-7.5NH threads Other kinds of threads are available.
·Mechnical Connector:AWWA/ANSI C153/A21.536
·Flange Connector: ASME B16.5 CLASS 150/DIN 2501 PN16
·Painting Details: Red Polyurethane paint and Bitumen Black or painting upon request.
·Note: Each hydrant is supplied with a hydrant wrench.
·Approvals: UL246 Listed, FM1510 Approved.
Wet Barrel Hydrant:
·Design Standard: AWWA C503
·External Thread Standard: NFPA 19632.5″-7.5NH/4″-4NH/4.5″-4NH
·Water Inlet Flange Standard: ASTM B16.5 Class1506″/DIN2501 PN16 DN150
·Maximum Working Pressure: 250PSI
·Monitor Flange Standard: ASTM B16.5 Class1504″/DIN2501 PN16 DN100
·Working Temperature Range:0~80℃/32~176°F
Contact us today to learn more about our fire safety solutions!
